Iron and manganise oxidation

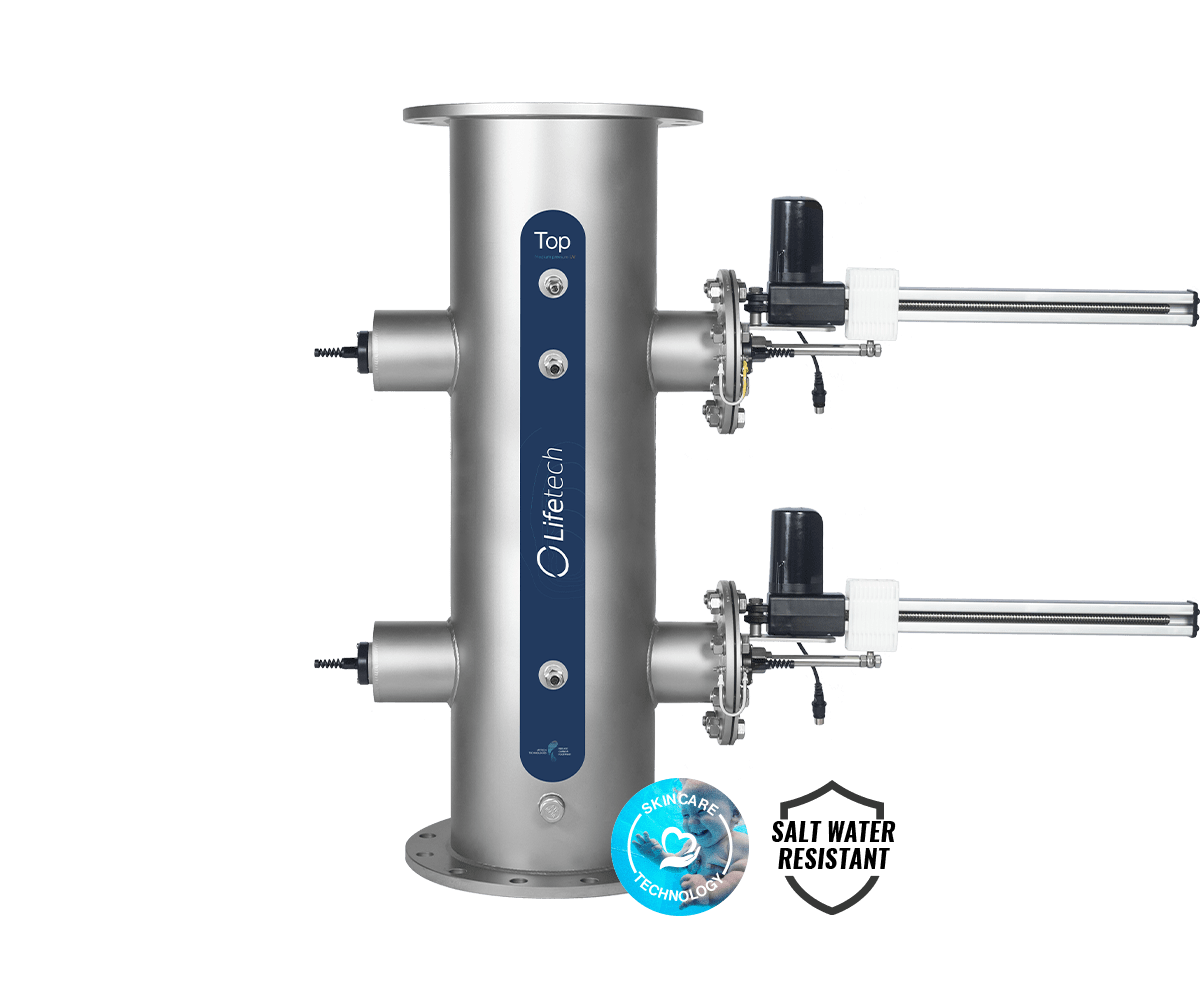

TOP direct
up to 910 m3/h
The most advanced mediu-pressure UV system on the market. Permanent...

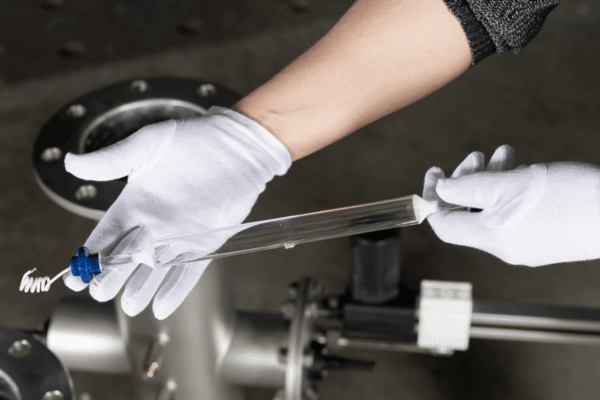

Find out more| Expected life of UV lamp | 18,000 hours |
|---|---|
| Technology (Series) | Medium-pressure UV systems (200–600 nm) |
| Max flow rate (UV dose 60 mJ/cm2) | up to 910 m3/h |
Why choose TOP direct
Maximum Performance
Flow rates up to 910 m³/h — ideal for large public pools.
Advanced LifeAGE® Technology
Extends lamp life by up to 125% and saves up to 50% energy.

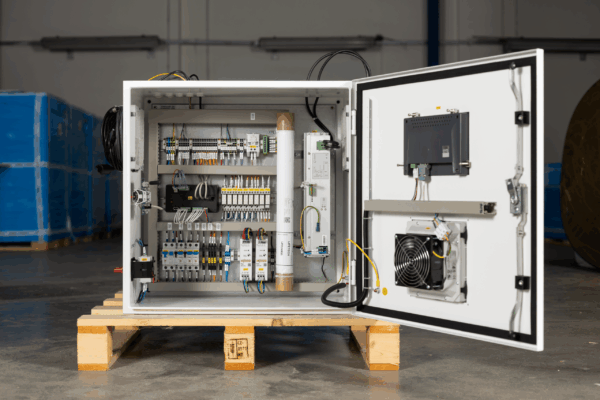

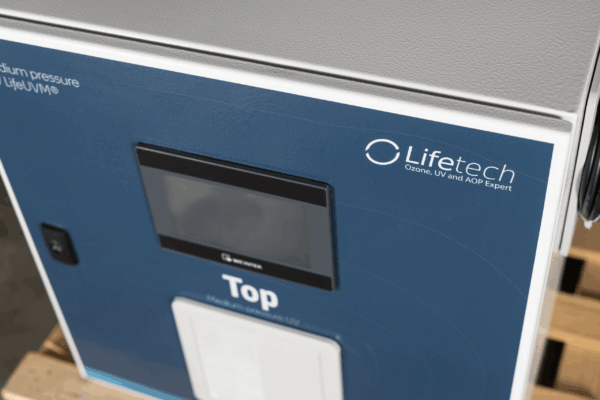

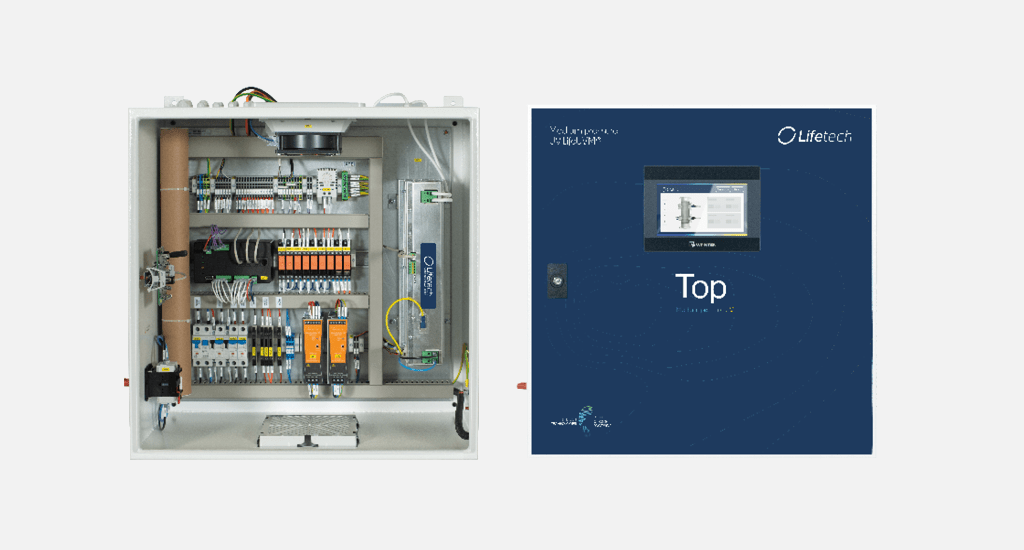

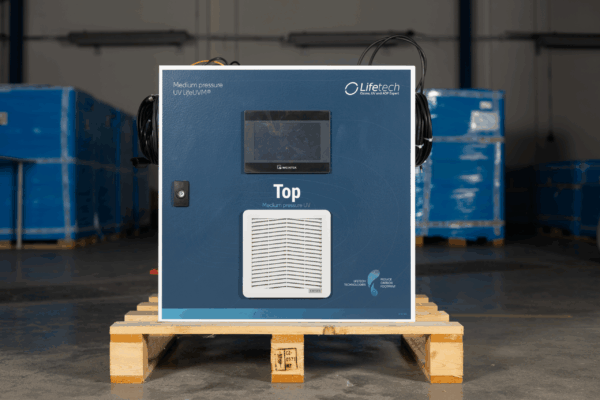

Smart control
Adjusts UV output based on real-time water quality.
Chlorine-free odor
Eliminates trichloramine and improves the overall pool environment.

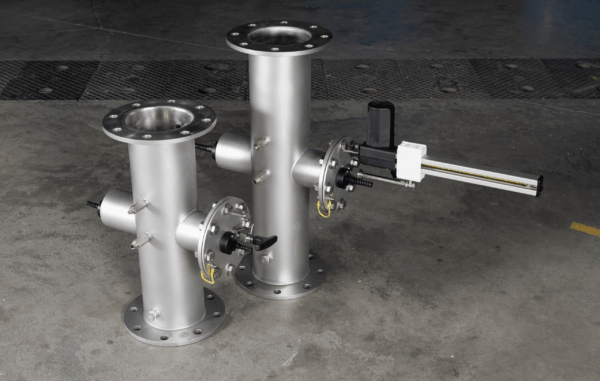

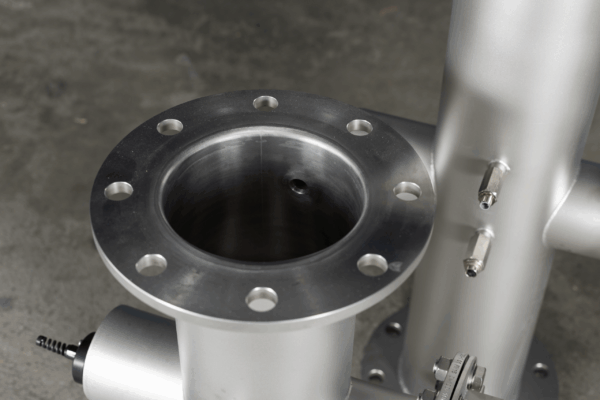

Industrial-grade construction
316L stainless steel engineered to meet the DIN 19643 standard.

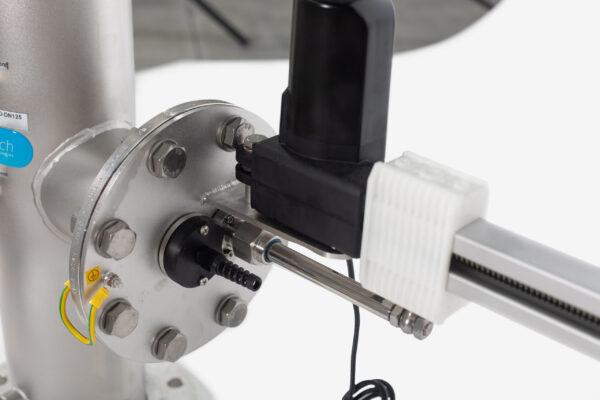

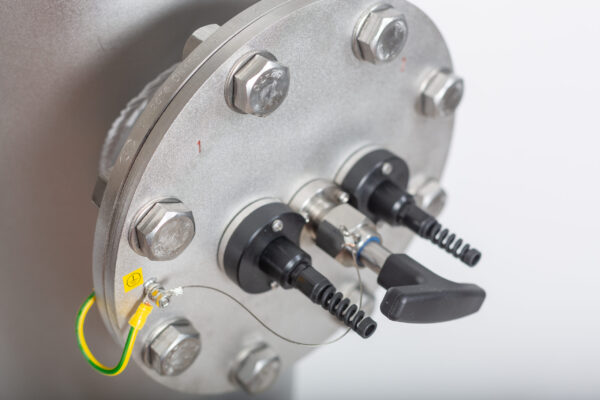

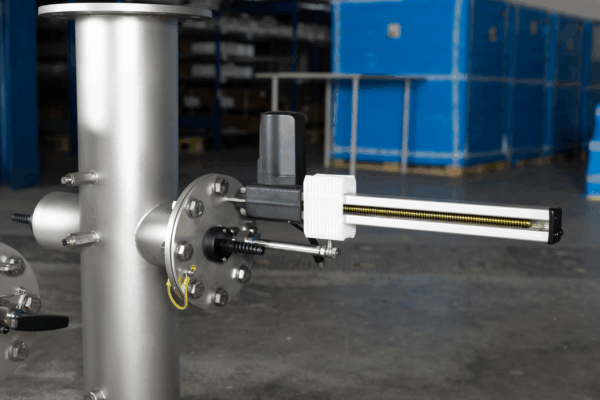

Automatic cleaning
Automatic wiper maintains lamp efficiency and reduces maintenance.
TOP is ideal for public pools and whirlpools, ensuring clean, safe water without chlorine odor while eliminating trichloramine that causes skin, eye, and respiratory irritation.
By significantly reducing chlorine usage, TOP helps you achieve a healthy pool environment while minimizing chemical exposure. Its advanced technology not only improves water quality but also enhances air conditions around the pool or whirlpool. The system is energy-efficient, easy to maintain, and integrates seamlessly into existing setups. With TOP, you can enjoy crystal-clear water, improved swimmer comfort, and the benefits of a truly healthy pool.
What is a healthy pool?References: Medium-pressure UV systems are an excellent choice.
07. 09. 2023
View the reference

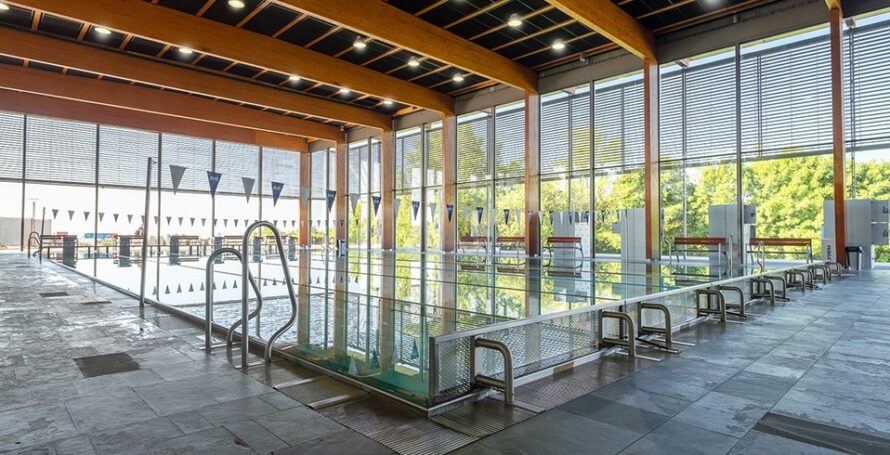

Kravi Hora Sports & Recreation Centre Swimming Pool
Public pools, Public whirlpools AOP (advanced oxidation process), Ozone, UVM – Medium pressure UV
04. 09. 2024
View the reference

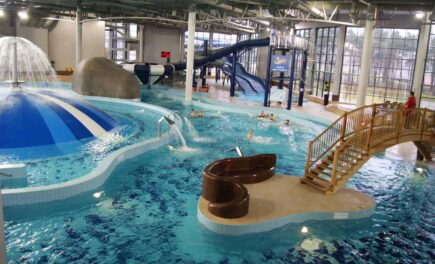

Wodny Świat in Zielona Góra, Poland
Public pools, Public whirlpools UVM – Medium pressure UV
14. 12. 2023
View the reference
Grand Hotel Kempinski High Tatras *****
Public pools, Public whirlpools AOP (advanced oxidation process), Ozone, UVM – Medium pressure UVTechnical parameters - TOP direct
Water treatment systems have different parameters for private and public pools. For more details, contact us.
| Expected life of UV lamp | 18,000 hours |
|---|---|
| Technology (Series) | Medium-pressure UV systems (200–600 nm) |
| Application | Indoor pools, Outdoor pools, Whirlpools |
| Salt pool resistant (salt concentration up to 5 kg/m3) | Yes |
| Max flow rate (UV dose 60 mJ/cm2) | up to 910 m3/h |
| Power supply | Advanced electronic power supply - LifeAGE® |

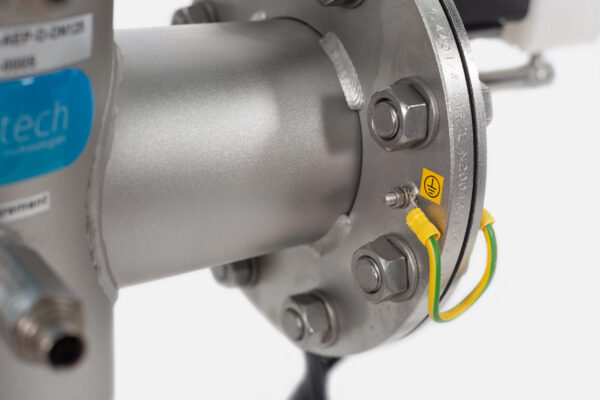

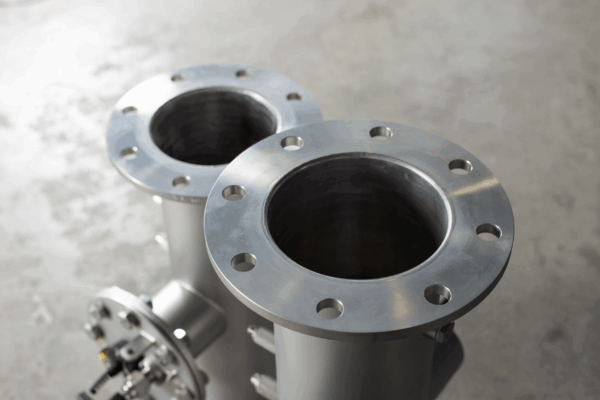

| Connection | DN 125 – DN 400 (flange) |
| Total power input of UV lamps | 1 – 18 kW |

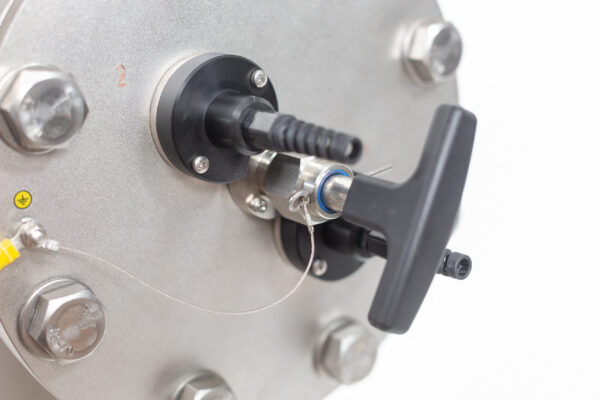

| Wiper | Manual wiper, Automatic wiper |

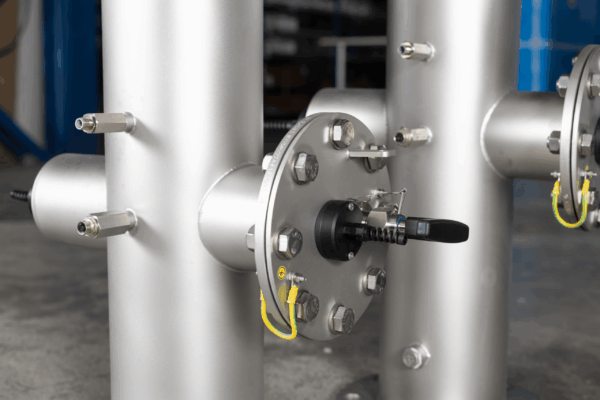

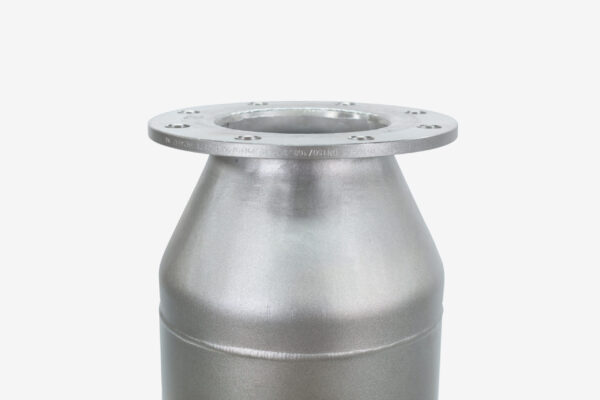

| Material | Stainless-steel reactor 316L (Salt water resistant) |

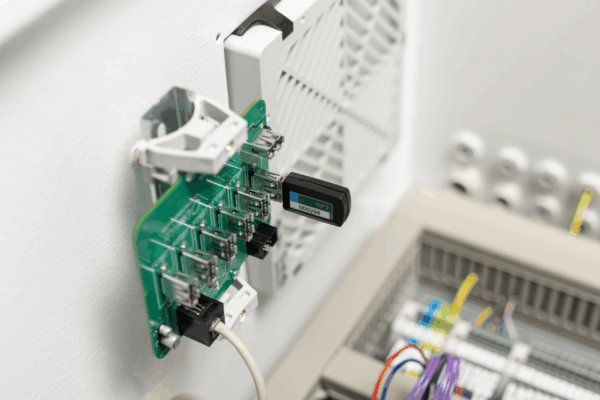

| Extension | Temperature sensor UV sensor Modbus connection TS touch display |
| Manual wiper (MW) | Automatic wiper (AW) | Connection | Max flow rate (UV dose 60 mJ/cm2) | Total power input of UV lamps | ||
|---|---|---|---|---|---|---|
| LifeUVM0110-13-MW-AEP-TS-D-DN125 | LifeUVM0110-13-AW-AEP-TS-D-DN125 | 125 | 33 | 1/I | ||
| LifeUVM0110-16-MW-AEP-TS-D-DN150 | LifeUVM0110-16-AW-AEP-TS-D-DN150 | 150 | 46 | 1/I | ||
| LifeUVM0120-16-MW-AEP-TS-D-DN150 | LifeUVM0120-16-AW-AEP-TS-D-DN150 | 150 | 63 | 2/I | ||
| LifeUVM0120-21-MW-AEP-TS-D-DN200 | LifeUVM0120-21-AW-AEP-TS-D-DN200 | 200 | 88 | 2/I | ||
| LifeUVM0120-21-MW-AEP-TS-D-DN150 | LifeUVM0120-21-AW-AEP-TS-D-DN150 | 150 | 88 | 2/I | ||
| LifeUVM0130-27-MW-AEP-TS-D-DN250 | LifeUVM0130-27-AW-AEP-TS-D-DN250 | 250 | 147 | 3/I | ||
| LifeUVM0130-27-MW-AEP-TS-D-DN150 | LifeUVM0130-27-AW-AEP-TS-D-DN150 | 150 | 147 | 3/I | ||
| LifeUVM0130-32-MW-AEP-TS-D-DN300 | LifeUVM0130-32-AW-AEP-TS-D-DN300 | 300 | 207 | 3/I | ||
| LifeUVM0130-32-MW-AEP-TS-D-DN250 | LifeUVM0130-32-AW-AEP-TS-D-DN250 | 250 | 207 | 3/I | ||
| LifeUVM0230-27-MW-AEP-TS-D-DN250 | LifeUVM0230-27-AW-AEP-TS-D-DN250 | 250 | 252 | 6/III | ||
| LifeUVM0230-32-MW-AEP-TS-D-DN300 | LifeUVM0230-32-AW-AEP-TS-D-DN300 | 300 | 315 | 6/III | ||
| LifeUVM0230-32-MW-AEP-TS-D-DN250 | LifeUVM0230-32-AW-AEP-TS-D-DN250 | 250 | 315 | 6/III | ||
| LifeUVM0330-32-MW-AEP-TS-D-DN300 | LifeUVM0330-32-AW-AEP-TS-D-DN300 | 300 | 462 | 9/III | ||
| LifeUVM0430-32-MW-AEP-TS-D-DN300 | LifeUVM0430-32-AW-AEP-TS-D-DN300 | 300 | 616 | 12/III | ||
| LifeUVM0430-37-MW-AEP-TS-D-DN350 | LifeUVM0430-37-AW-AEP-TS-D-DN350 | 350 | 630 | 12/III | ||
| LifeUVM0430-40-MW-AEP-TS-D-DN400 | LifeUVM0430-40-AW-AEP-TS-D-DN400 | 400 | 644 | 12/III | ||
| LifeUVM0430-40-MW-AEP-TS-D-DN350 | LifeUVM0430-40-AW-AEP-TS-D-DN350 | 350 | 644 | 12/III | ||
| LifeUVM0530-40-MW-AEP-TS-D-DN400 | LifeUVM0530-40-AW-AEP-TS-D-DN400 | 400 | 770 | 15/III | ||
| LifeUVM0530-40-MW-AEP-TS-D-DN350 | LifeUVM0530-40-AW-AEP-TS-D-DN350 | 350 | 770 | 15/III | ||
| LifeUVM0630-40-MW-AEP-TS-D-DN400 | LifeUVM0630-40-AW-AEP-TS-D-DN400 | 400 | 910 | 18/III |
How the Technology Works
Frequently Asked Questions
Is UVC light safe for humans? Articles
Direct exposure to UVC light can be harmful to human skin and eyes. Therefore, it is essential to use UVC technology in controlled environments and ensure that proper safety measures are in place to protect individuals from direct exposure to UVC light.
UVM – Medium pressure UV
Medium-pressure UV lamps operate on the broad-spectrum radiation principle, spanning from 200 to 600 nm. This broad range of wavelengths enhances their effectiveness by increasing the number of pathogens they can target. Furthermore, this broad-spectrum UV radiation permanently disrupts the DNA of microorganisms, preventing any possibility of DNA repair and reactivation.
Find out more
Bacteria destruction
Viruses destruction
Iron and manganise oxidation
Algae destruction
Pathogens destruction
Hazardous contaminants destruction
Removes trichloramines
Removes taste and odor
Removes organic pollutant TOC (Total Organic Carbon)
Organic pollutants (BTEX, POPs, AOX, etc.) destruction
Prevents collapse of the hall

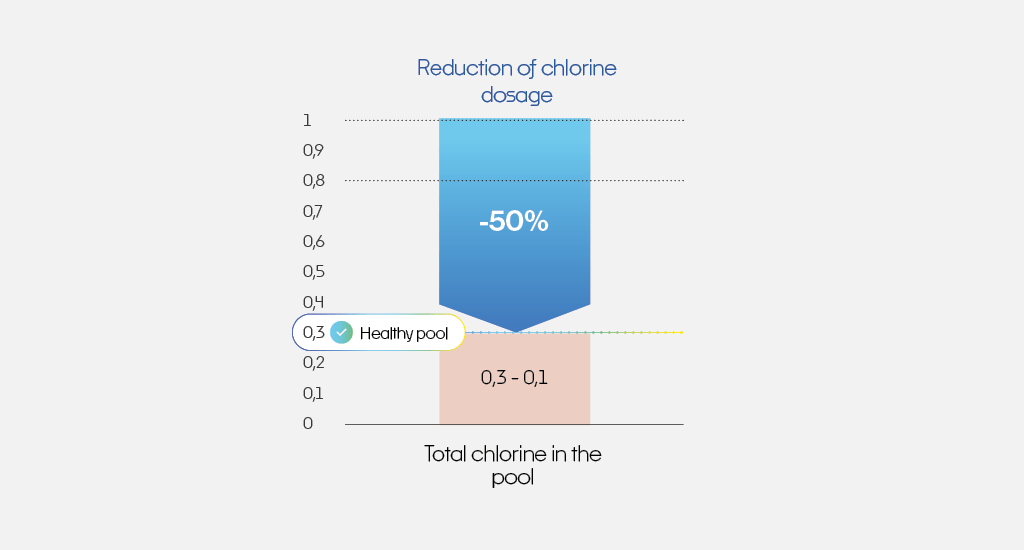

Fast ROI (Return On Investment) - Chlorine Reduction 50%
Reducing chlorine usage by up to 50% with advanced technologies like TOP significantly lowers the ongoing costs of pool maintenance. This reduction includes savings on purchasing, storing, and handling chlorine, as well as minimizing the wear and tear on equipment caused by excessive chemical exposure. These operational savings lead to a faster return on your initial investment, typically within months, making it a cost-effective and sustainable choice for maintaining a clean and healthy pool.
LifeAGE saves up to 50% of energy costs
Medium-pressure UV systems with LifeAGE® technology offer minimal operational expenses through low power consumption and reduced service costs. They adapt UV radiation intensity to current needs, provide versatile performance under extreme loads, and extend lamp lifespan. By optimizing energy use, these systems lower the carbon footprint while maintaining superior water quality.

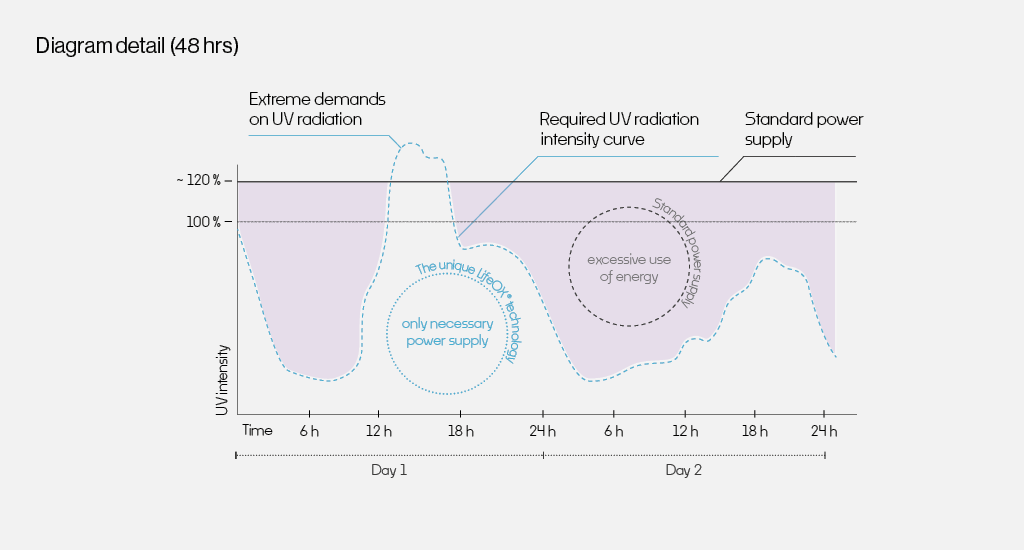

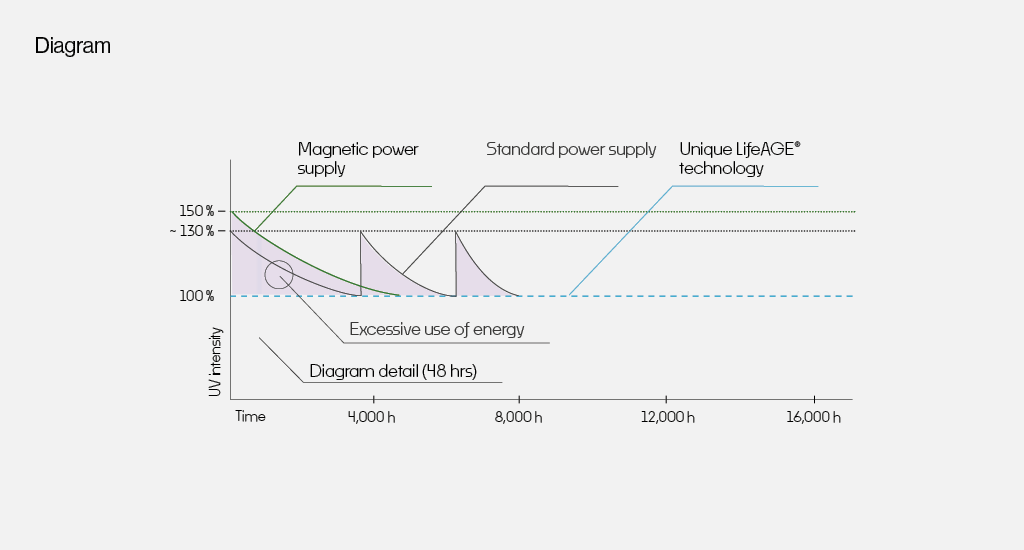

The magic lies in the dynamic release of energy needed to economically manage the intensity of UV radiation. The medium-pressure LifeUVM® system with the LifeAGE® technology emits UV intensity copying the minimum required radiation intensity curve. This system is autonomous and works in real-time. Therefore, it does not need to be connected to any external device that controls it to achieve this optimal intensity course. Therefore, the life of the UV lamp can be increased to up to 18,000 operating hours.
Healthy pool
Chemical-free technology. Minimizing the chemicals in the water plus reduction of monthly costsHealthy pool
Chemical-free technology. Minimizing the chemicals in the water plus reduction of monthly costsA healthy pool is one that ensures a safe, clean, and pleasant environment for swimmers while minimizing health risks and environmental impact. This is achieved by effectively removing harmful substances like trichloramine, reducing chemical usage, and maintaining optimal water quality. Advanced technologies, such as UV and AOP systems, play a crucial role in achieving a balanced and eco-friendly pool environment.
