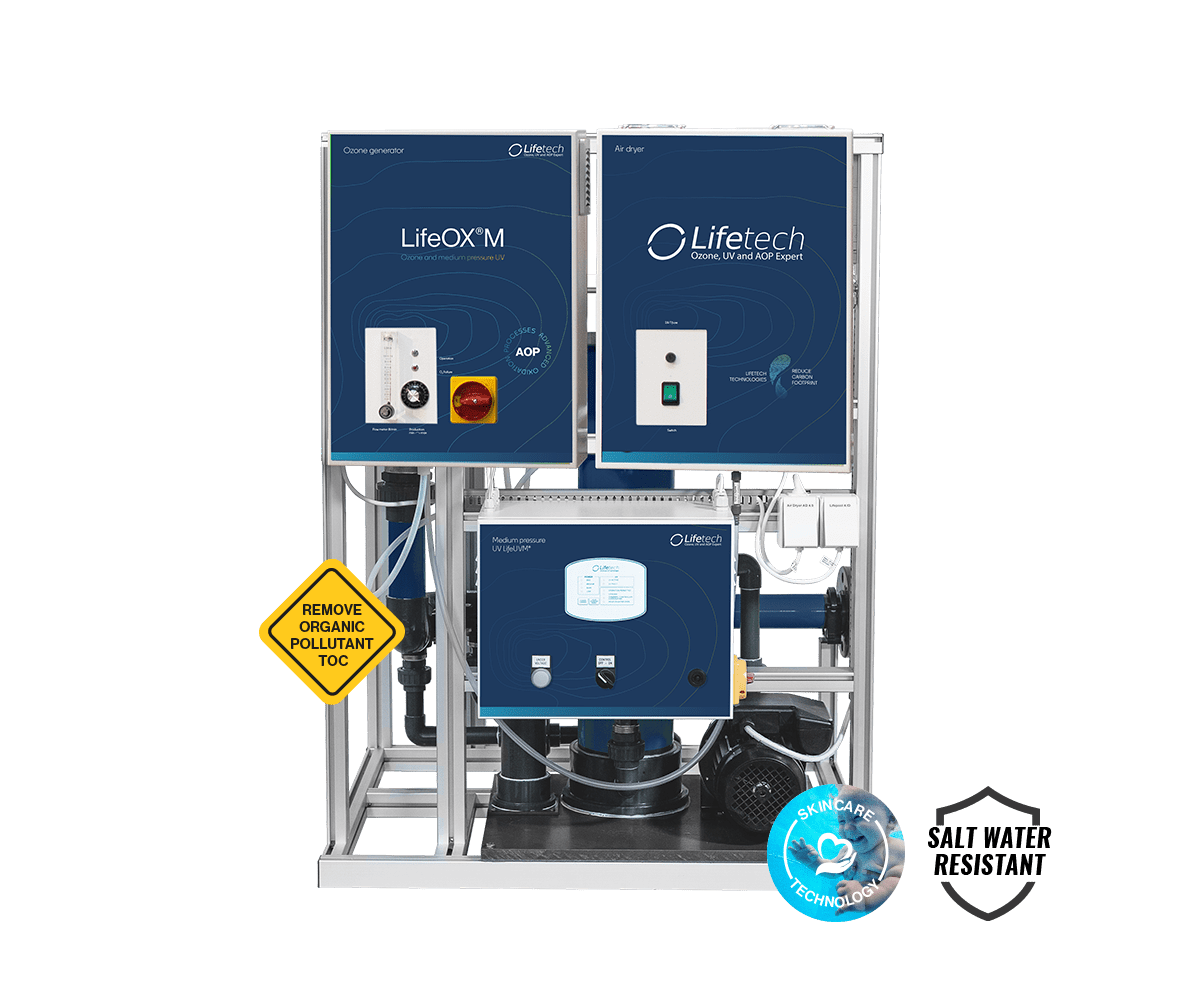

LifeOX® M
money can get
Disinfection & Prevention of the Formation of Unhealthy Trichloramine &...
Find out more| Technology | AOP (Advanced Oxidation Process) |
|---|---|
| Max flow rate | up to 250 m3/h |
| UV lamp type | Medium-pressure LifeUVM® |
Why choose LifeOX® M
Highest level of disinfection
Ozone and UV generate strong radicals for maximum water purity.
Tap-quality water
Removes trichloramine, organic contaminants, and odors for tap-quality water.
Chemical savings
Significantly reduces chemical use and operating costs.
Modular solution
Up to 250 m³/h per unit — scalable for any facility.
Globally proven solution
Installed worldwide in waterparks, hotels, and wellness facilities.
Easy installation
Fast installation with no special adjustments required.
Fastest return on investment
Highly efficient water-treatment technology that lowers operating costs.
LifeOX® M, powered by AOP technology, offers unmatched oxidation power, eliminating trichloramine and reducing TOC for exceptional water quality and hygiene.
References: AOP systems are an excellent choice.
10. 08. 2024
View the reference

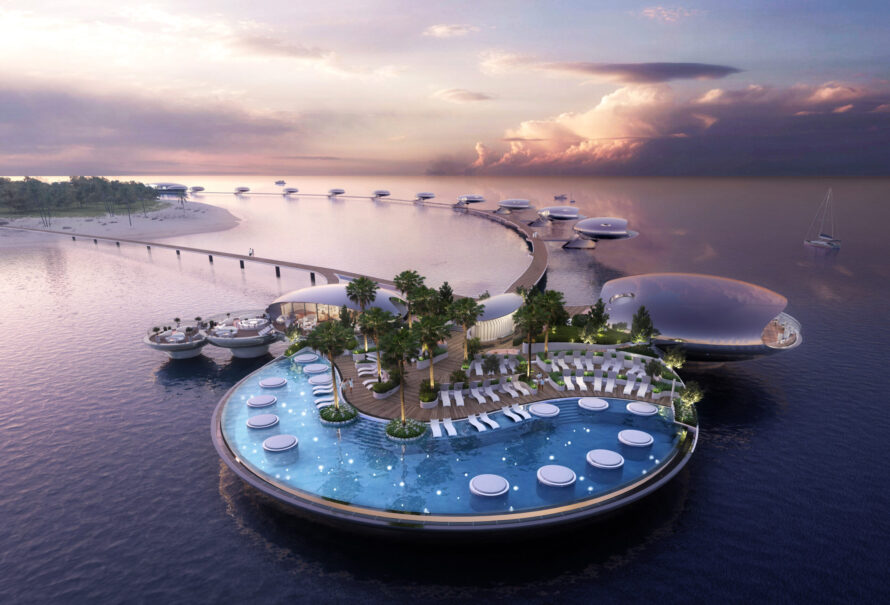

Sheybarah Island – Red Sea Global, Kingdom of Saudi Arabia
Public pools, Private pools AOP (advanced oxidation process)
07. 04. 2024
View the reference

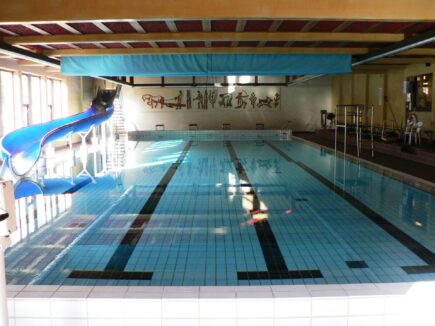

Lifetech technology in the Skjaak Swimming Pool – Norway
Public pools AOP (advanced oxidation process)
18. 05. 2024
View the reference
TA’AKTANA, a Luxury Collection Resort & Spa, Labuan Bajo, Indonesia
Public pools, Public whirlpools AOP (advanced oxidation process)Technical parameters - LifeOX® M
Water treatment systems have different parameters for private and public pools. For more details, contact us.
| Technology | AOP (Advanced Oxidation Process) |
|---|---|
| Application | Indoor pools, Outdoor pools, Whirlpools |
| Salt pool resistant (salt concentration up to 5 kg/m3) | Yes |
| Max flow rate | up to 250 m3/h |

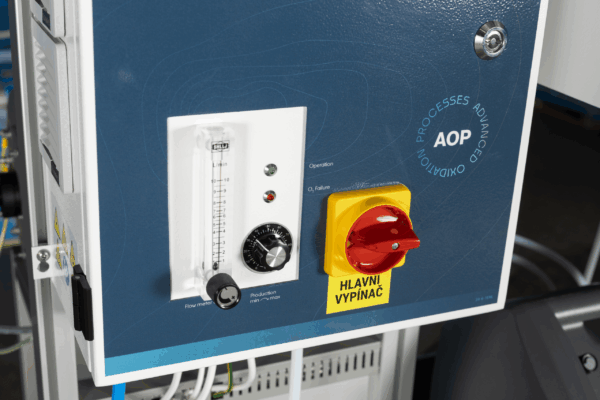

| Ozone generation | Air dryer Oxygen concentrator |

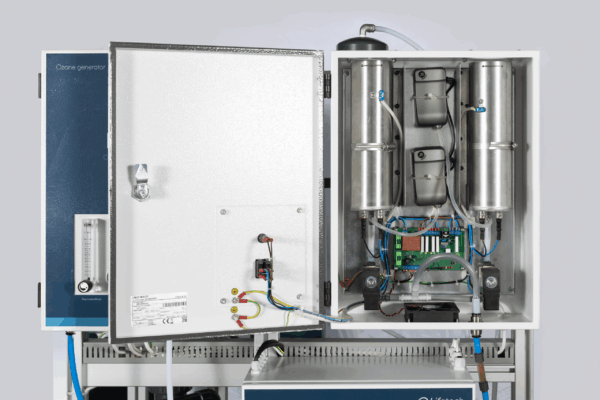

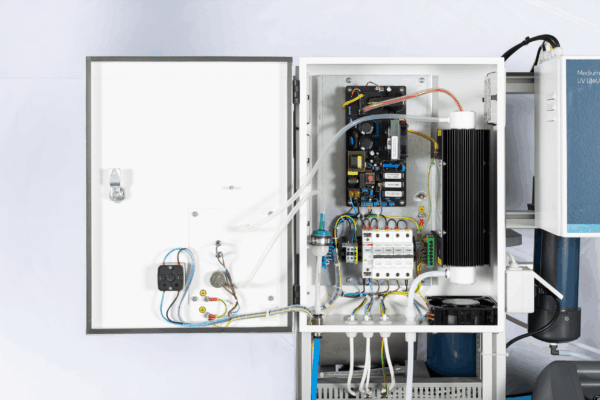

| Ozone generation technology | Corona discharge |
| AOP technology | Ozone + UV |
| Power control | 10–100 % |
| Installation | Plug & Play |

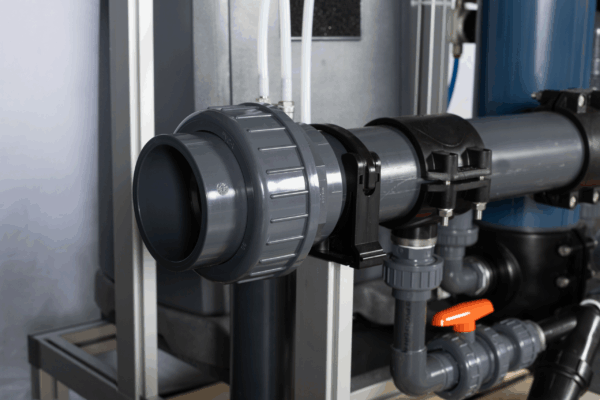

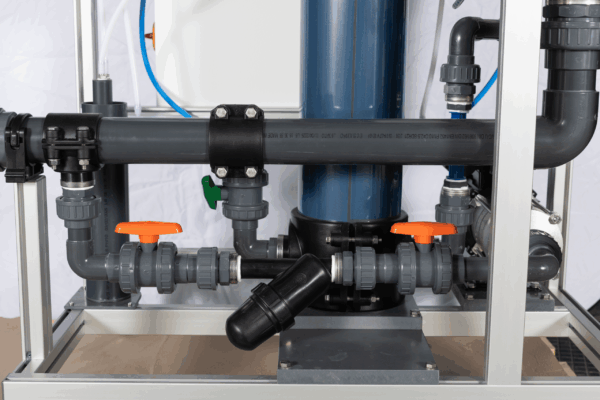

| Connection system | In pipes (in-line) In by-pass |

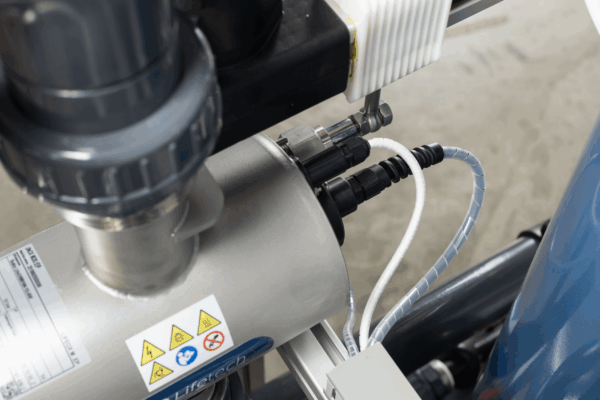

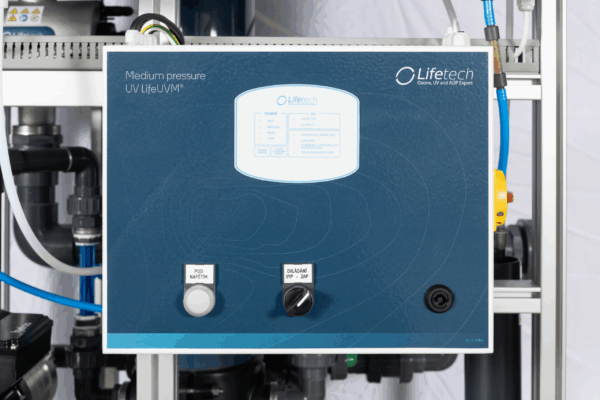

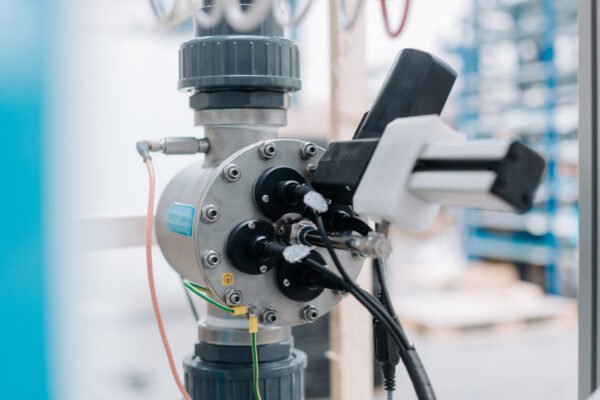

| UV lamp type | Medium-pressure LifeUVM® |

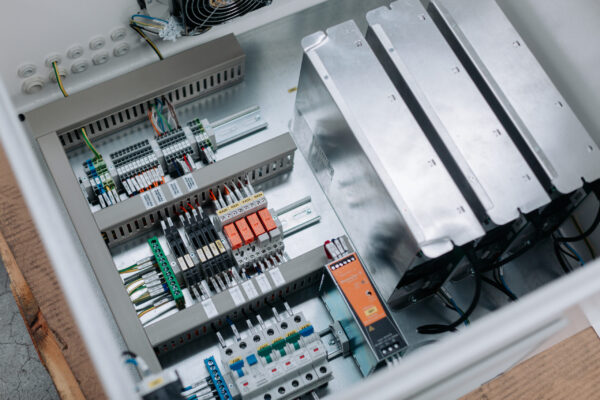

| Power supply | Advanced electronic power supply LifeAGE® |
| Connection | 2“-3“, DN150 – 250 (flange) |
| Input power (kW) | 1.8– 9.0 |
| Wiper | Without wiper, Automatic wiper |

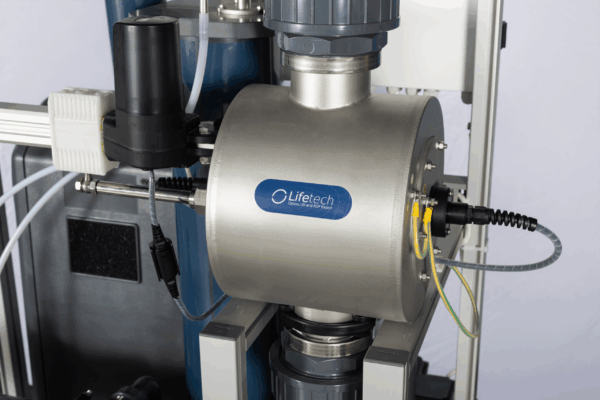

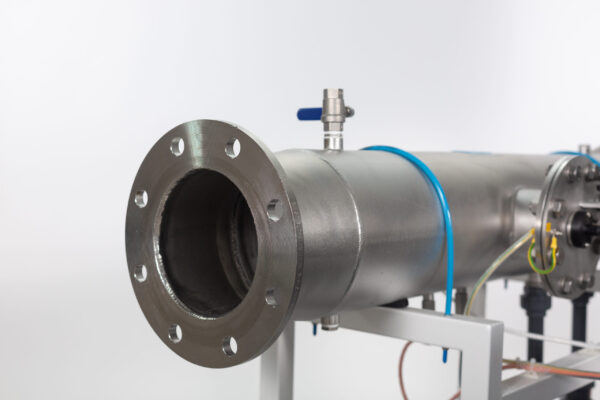

| Material | Stainless-steel reactor 316L (Salt water resistant) |
| Extension | Temperature sensor UV sensor Modbus connection TS touch display |
| Variant | Ozone generation | Connection | Max flow rate | Dimensions (mm) | Weight (kg) | Total power input of UV lamps (kW)/phase | Total power input of AOP (kW) | ||
|---|---|---|---|---|---|---|---|---|---|
| LifeOX® M10.EP | Air dryer | 2‘‘ | 10 m3/h | 1063x740x1,334 | 120 | 0,4 / III | 1,8 | ||
| LifeOX® M20.EP | Air dryer | 2‘‘ | 20 m3/h | 1063x740x1,334 | 120 | 0,6 / III | 2.0 | ||
| LifeOX® M40.EP | Oxygen concentrator | 3‘‘ | 40 | 1,151x750x1,500 | 135 | 0,6 / III | 2.5 | ||
| LifeOX® M90.EP | Oxygen concentrator | DN 125 (flange) | 90 | 1,300x1,260x1,800 | 250 | 2 / III | 3.9 | ||
| LifeOX® M140.EP | Oxygen concentrator | DN 150 (flange) | 140 | 1,310x1,300x1,800 | 250 | 3 / III | 5.9 | ||
| LifeOX® M250.EP | Oxygen concentrator | DN 250 (flange) | 250 | 9.0 | 1,500x1,300x2,000 | 280 |
How the Technology Works
AOP (advanced oxidation process)
The high oxidation potential of ozone can be significantly increased by combining it with UV radiation. This method is known as advanced oxidation or UV oxidation. LIFETECH has developed its own LifeOX® technology based on optimised synergy between ozone and UV radiation.
The advanced oxidation process (AOP) is today's best water treatment technology. AOP is based on the formation of OH- radicals in the water. These OH- radicals have considerably higher oxidation potential compared to other water treatment oxidants. This means that OH- radicals (i.e., AOP technology) are able to oxidise particles in water much faster and more efficiently. The comparison can be found in the chart above. OH- radicals have a higher oxidation potential than hydrogen peroxide or ozone. The higher the oxidation potential, the more effective the water disinfection and purification.
Find out more
Bacteria destruction
Viruses destruction
Iron and manganise oxidation
Algae destruction
Pathogens destruction
Hazardous contaminants destruction
Removes trichloramines
Removes taste and odor
Removes organic pollutant TOC (Total Organic Carbon)
Organic pollutants (BTEX, POPs, AOX, etc.) destruction
Prevents collapse of the hall

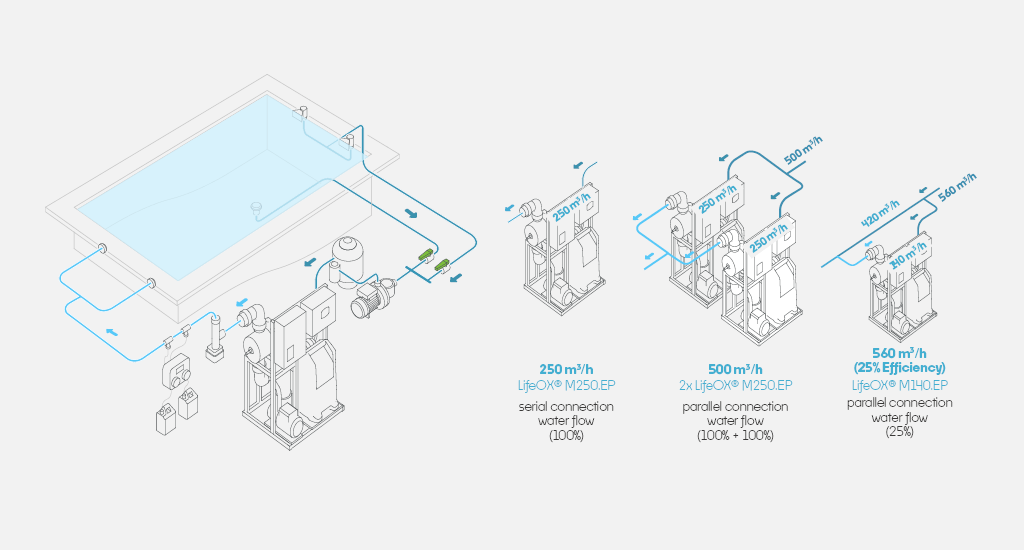

The LifeOX® M modular system treats any water flow, up to 250 m<sup>3</sup>/h per one system
The LifeOX® M system treats water flows up to 250 m³/h, making it ideal for pools of all sizes, from small facilities to large aquaparks. Its scalability ensures consistent water quality even under heavy use, creating a healthy and safe environment for all swimmers, including toddlers and asthmatics.

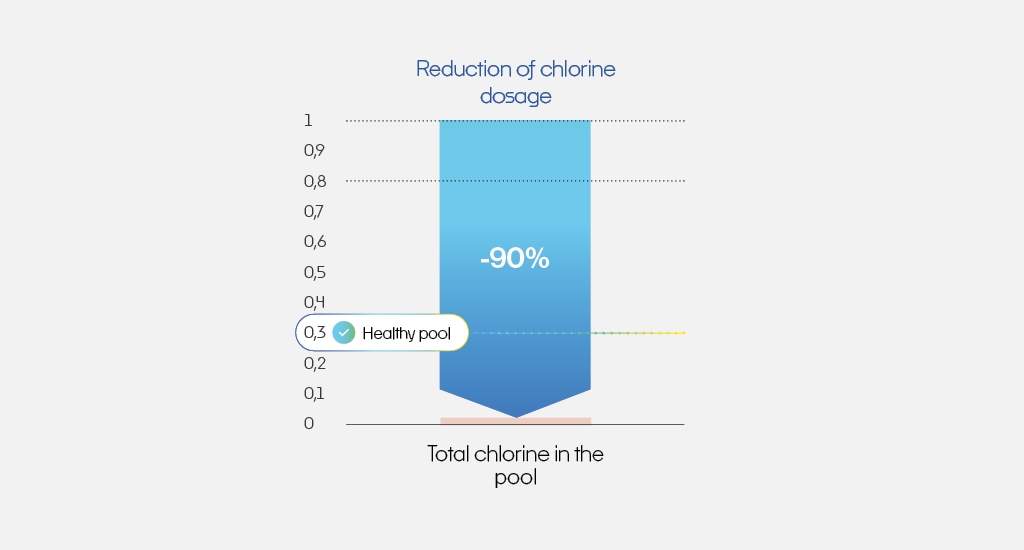

Fast ROI (Return On Investment) - Chlorine Reduction 90%
Reducing chlorine usage by up to 90% with advanced technologies like LifeOX® M significantly lowers the ongoing costs of pool maintenance. This reduction includes savings on purchasing, storing, and handling chlorine, as well as minimizing the wear and tear on equipment caused by excessive chemical exposure. These operational savings lead to a faster return on your initial investment, typically within months, making it a cost-effective and sustainable choice for maintaining a clean and healthy pool.
Healthy pool
Chemical-free technology. Minimizing the chemicals in the water plus reduction of monthly costsLifeAGE saves up to 50% of energy costs
AOP systems with LifeAGE® technology offer minimal operational expenses through low power consumption and reduced service costs. They adapt UV radiation intensity to current needs, provide versatile performance under extreme loads, and extend lamp lifespan. By optimizing energy use, these systems lower the carbon footprint while maintaining superior water quality.

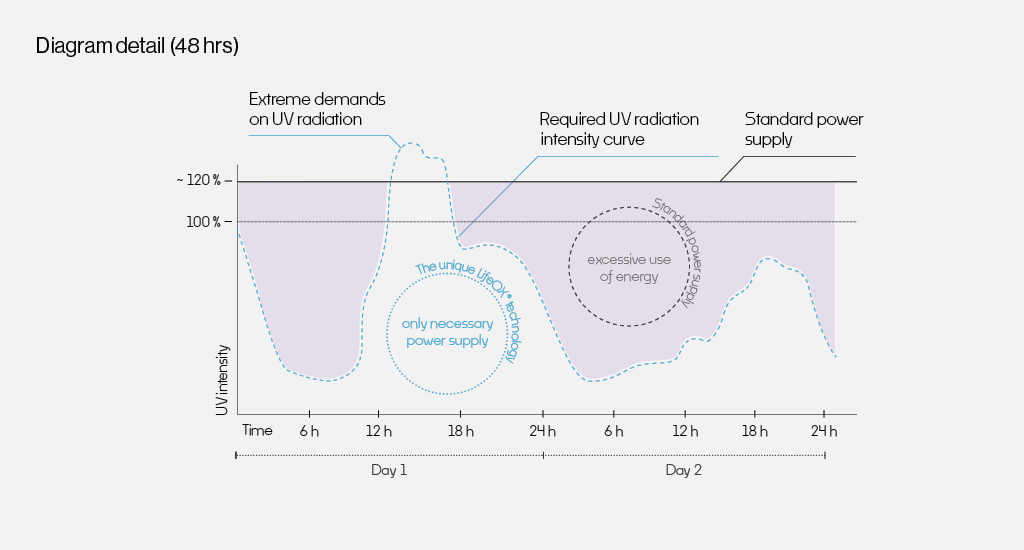

The magic lies in the dynamic release of energy needed to economically manage the intensity of UV radiation. The AOP system with the LifeAGE® technology emits UV intensity copying the minimum required radiation intensity curve. This system is autonomous and works in real-time. Therefore, it does not need to be connected to any external device that controls it to achieve this optimal intensity course. Therefore, the life of the UV lamp can be increased to up to 18,000 operating hours.
